Meet the FOD-BOT
An autonomous FOD cleaning robot engineered for the airfield
The future of airfield operations, realized.
Runtime
6
hours
Charge Time
2
hours
Max Speed
5.6
mph
Area Covered
2
acres/h
Operate at any time.
Attachment Options
The FOD-BOT can be equipped with a variety of attachments to optimize sweeping performance.
FOD-Razor® FBR-8
The FOD-Razor® FBR-8 is a friction mat sweeper that is ideal for airports who are concerned about small surface debris. The mat uses nylon-bristled panels to gather debris, which is then lifted by kinetic energy into plastic scoops for collection and later disposal. This is the most popular option at airports due to its efficiency, light weight, ease of transport, and lack of maintenance due to having no moving parts. However, it is less effective at collecting debris lodged in cracks or larger objects like cans, and its performance can be affected by strong winds exceeding 40 mph.

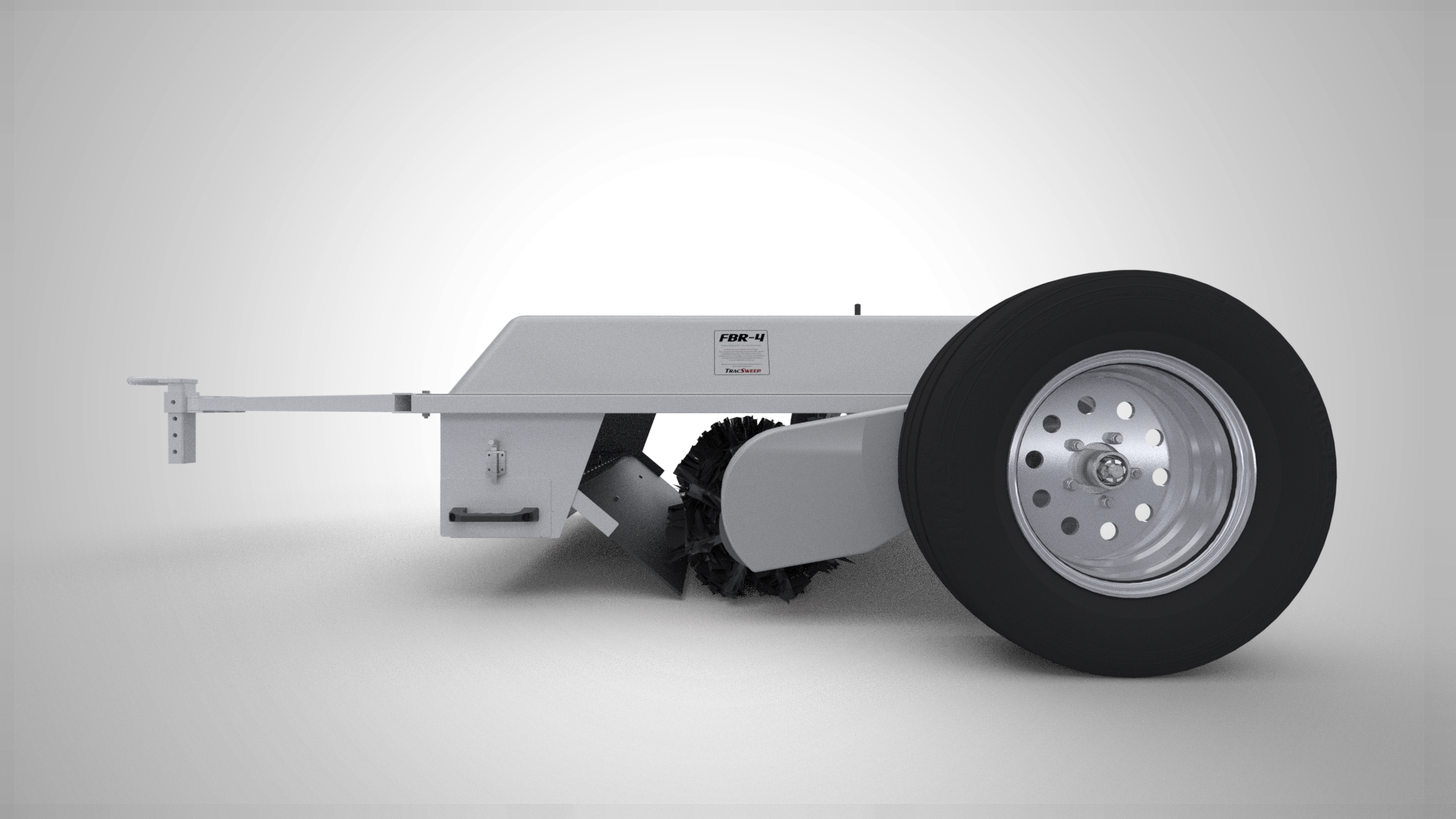

TracSweep® FBR-4
The TracSweep® FBR-4 is a mechanical sweeper equipped with a rotating broom that directs debris into a collection hopper. It is designed to remove both surface and subsurface FOD at the same time, offering versatile performance though it is not specialized in either task. Because debris is collected directly into the onboard hopper, the optional disposal station is not required when using this attachment.
Define your autonomy.
Control your entire fleet with Essential Commander.
Analyze Trends
Command FOD-BOTs from anywhere
Technical Specifications
Complete hardware and software specifications
Hardware
Physical design, performance characteristics, and sensor systems.
| Category | Parameter | Value |
|---|---|---|
| FOD Collection | Collection Size Range | 0.02–8 in |
| Dimensions & Weight | External Dimensions (L × W × H) | 3.6 × 2.0 × 2.6 ft |
| Dimensions & Weight | Wheel Diameter | 1.0 ft |
| Dimensions & Weight | Weight | 150 lb |
| Speed & Performance | Maximum Speed | 5.6 mph (2.5 m/s) |
| Speed & Performance | Maximum Incline (Without Payload) | 50% (26.5°) |
| Speed & Performance | Chassis | 4-wheel robot frame |
| Speed & Performance | Motor Type | 4 hub motors (500W each) |
| Power | Battery Type | Lithium Iron Phosphate (LFP) |
| Power | Operating Time | Up to 6 hours |
| Power | Charging Time | 2.0 hours at 220V (30–80% in 30 min) |
| Environment | Operational Temperature | -4°F to 104°F (-20°C to 40°C) |
| Environment | Weather Capability | All-weather and waterproof operation |
| Environment | Operating Conditions | Extreme temperatures; can be palletized to ship |
| Interface & Communication | External Communication | Redundant 5G router with Wi-Fi and UHF |
| Interface & Communication | I/O Ports | RJ45 Ethernet, USB-A |
| Interface & Communication | Attachment Interface | 2" ball hitch |
| Sensors | GPS | Differential GPS with RTK |
| Sensors | LiDAR | 360° 3D LiDAR |
| Sensors | Collision Avoidance | Ultrasound + LiDAR sensors |
| Accessories & Attachments | Autonomy Accessories | Wireless charger, Disposal station |
| Accessories & Attachments | Surface Cleaning | FOD-Razor® FBR-8, TracSweep® FBR-4 |
Software & Systems
Onboard autonomy, fleet management, and safety systems.
| Category | Parameter | Value |
|---|---|---|
| Safety Features | Architecture | Multi-layer safety (FAA and airside standards) |
| Safety Features | E-Stop | Dual E-Stop with remote override |
| Safety Features | Bumper Bar | Immediate stop and drop in place |
| Safety Features | Obstacle Detection | 360° LiDAR obstacle detection |
| Safety Features | Geofencing | Virtual safety zones |
| Onboard Software (Edge) | Autonomy Stack | Essential Core |
| Onboard Software (Edge) | Sensor Fusion | LiDAR, GPS, and vision data integration |
| Onboard Software (Edge) | Navigation | GNSS/RTK and LiDAR with dynamic replanning |
| Onboard Software (Edge) | Autonomy Cycle | Deploy → Sweep → Return → Self-Charge → Self-Dispose |
| Onboard Software (Edge) | Operator Interface | Touchscreen control with local start/stop and health display |
| Onboard Software (Edge) | Safety Systems | Redundant safety and override systems |
| Cloud & Fleet Systems | Fleet Management | Essential Ops Supervisor (cloud-hosted) |
| Cloud & Fleet Systems | Control Hub | Essential Commander (browser-based) |
| Cloud & Fleet Systems | Mission Tracking | Live mission tracking and remote dispatch |
| Cloud & Fleet Systems | Multi-Robot Coordination | Zone scheduling and fleet coordination |
| Cloud & Fleet Systems | Analytics & Reports | Automated performance analytics and ROI evaluation |
| Cloud & Fleet Systems | Notifications | Remote alerts, overrides, and maintenance notifications |
| Cloud & Fleet Systems | Telemetry | Real-time system health monitoring |
Hardware and software specifications subject to change. Contact us for the latest technical data sheets.
